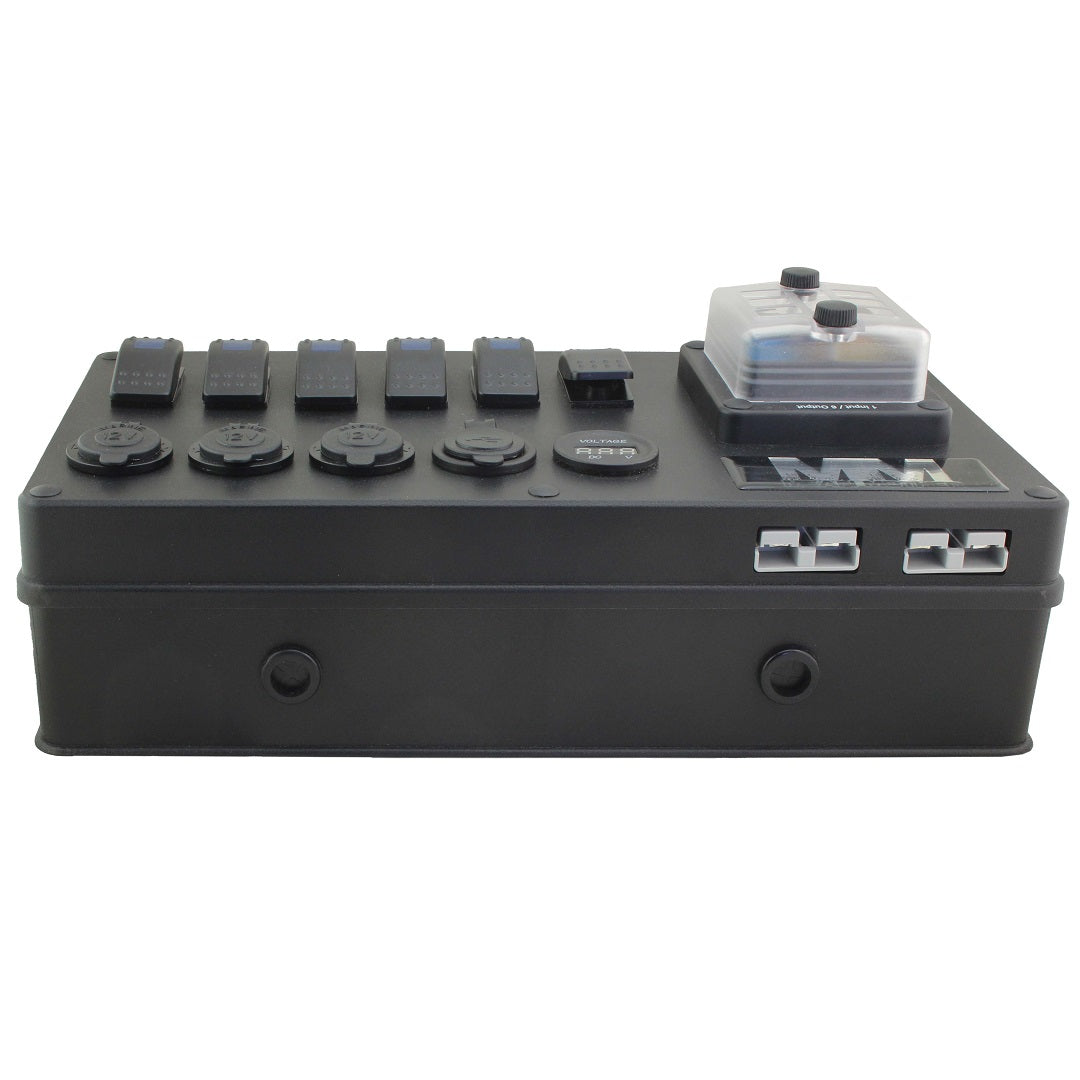

Mean Mother® 12v Power Control Box

Original price $199.00 - Original price $199.00
Original price
$199.00
$199.00 - $199.00
Current price $199.00
SKU MMCB01

The Mean Mother 12V Power Control Boxes are an Excellent Solution for any 12V Fitout. Ideal for Canopies, Boats, Caravans and other 12V Systems.
These Pre-wired Boxes are Great for the DIY or Professional Installer. Control your Lighting, charge your Phone and run your Fridge all from this Quality Unit.

* Lightweight Nylon Housing
* 6 Way Waterproof Fuse Box
* 12V Cig Socket & Dual USB
* Fused Polycarbonate Anderson Style
* Fused, Heat and Impact Resistant Polycarbonate Anderson Style 50A Connectors
* Blue led 3P ON-OFF Switch ×6 (12V 20A)
* Power Socket ×3 With Flat Style Covers (12V 20A)
* Blue Dual Port USB Socket×1 (5V 3.1A DC)
* Blue led Voltmeter Socket ×1 (6V~~30V DC)
* 10 AWG & 14 AWG Wiring
* Wiring Inlets Grommets
* 6way waterproof Fuse Box ×1 (100A 32V DC.max)
* 4way Bus Bar ×2 (150A 32V DC.max) (red/black)
* Fuse︰5A×1、15A×3、20A×1、30A×2
* Wire︰1015/10AWG & 1015/14AWG
* Dimensions (L x W x H)︰355×180×138 mm (including fuse block height)
* 12 Month Warranty - Conditions Apply

TAKE THEIR WORD FOR IT


Shipping

Shipped within 48hrs of Order Nationally

Australian Owned

We've Been around over 50 years so You Know You can Trust Us

Min 12 Months Warranty

Some of our Products have a Lifetime Warranty

Easy Returns

30 Day Return Period

FEATURES

  • Heavy Duty Aluminium Case and Mounting Brackets
  • Microchip Monitoring and Control
  • Fully Automatic High Frequency MultiStage Charging
  • Pulse Mode Technology To Extend Battery Life
  • Internal Temperature Monitoring and Output Control
  • Short Circuit and Overcharge Protection
  • Reverse Polarity Protection For Input and Output
  • Thermal Overload Protection
  • Do Not Require an External Solar Regulator
  • Built in MPPT with separate input
  • Solar Input Overload Protection
  • Comprehensive Instruction Manual Included
  • DIY easy to install unit
  • Set and forgot battery selection
  • Easy to read display

BACKED BY OUR

IRON CLAD WARRANTY.

We stand behind our Mean.

USEFUL SPECIFICATIONS

DC battery input : 12.8 – 16.0 Volts
Solar input : 13.0 – 27.0 Volts
Output/charging voltage : 13.3 – 16.2V (stops charging when alternator output or vehicle battery below 12.3V)
DC output current : 20A
Solar output current : 20A
Minimum start voltage : 1.5 Volts – for battery being charged
