BACKED BY OUR

IRON CLAD WARRANTY.

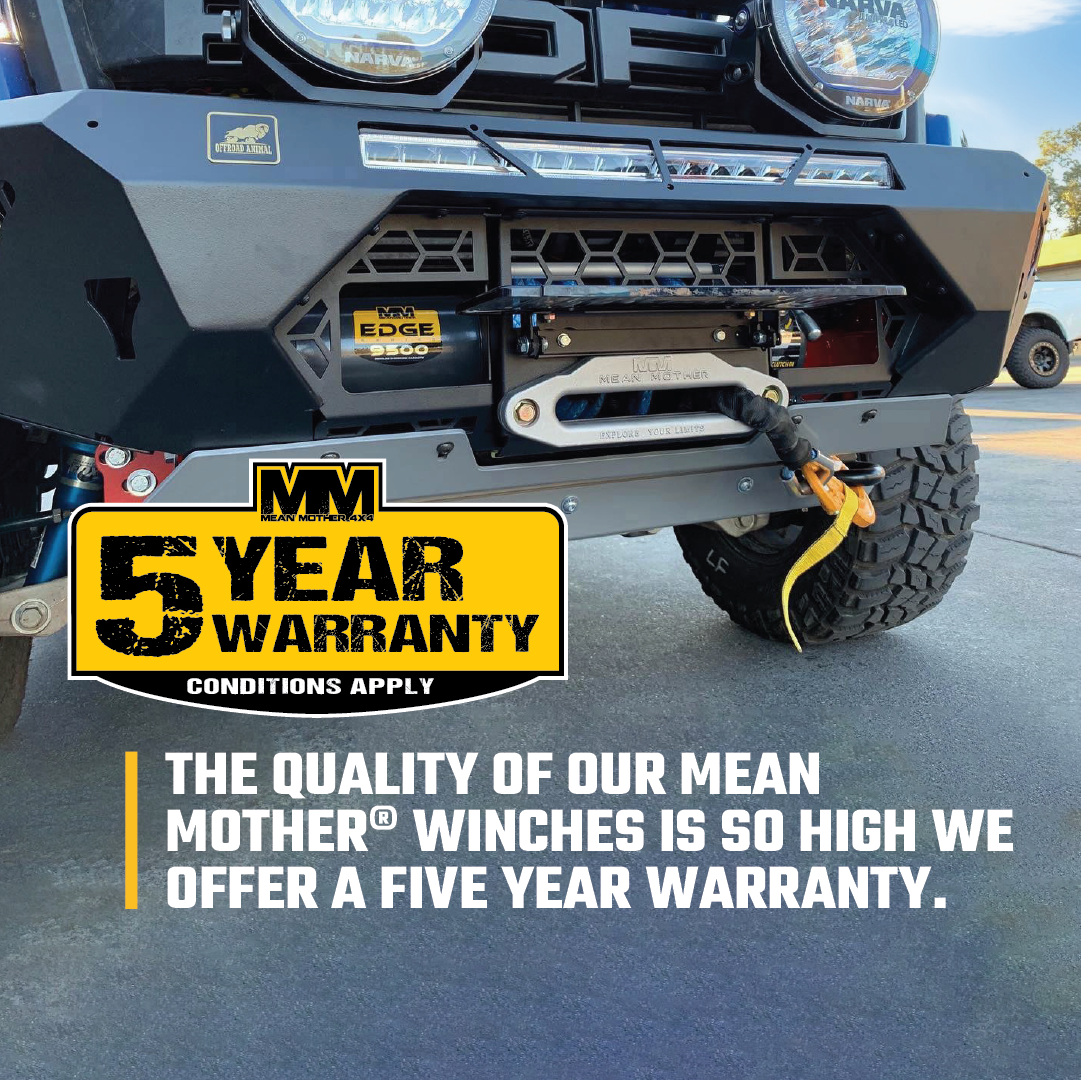

We stand behind our Mean Mother® Winches and offer a Five Year Warranty.

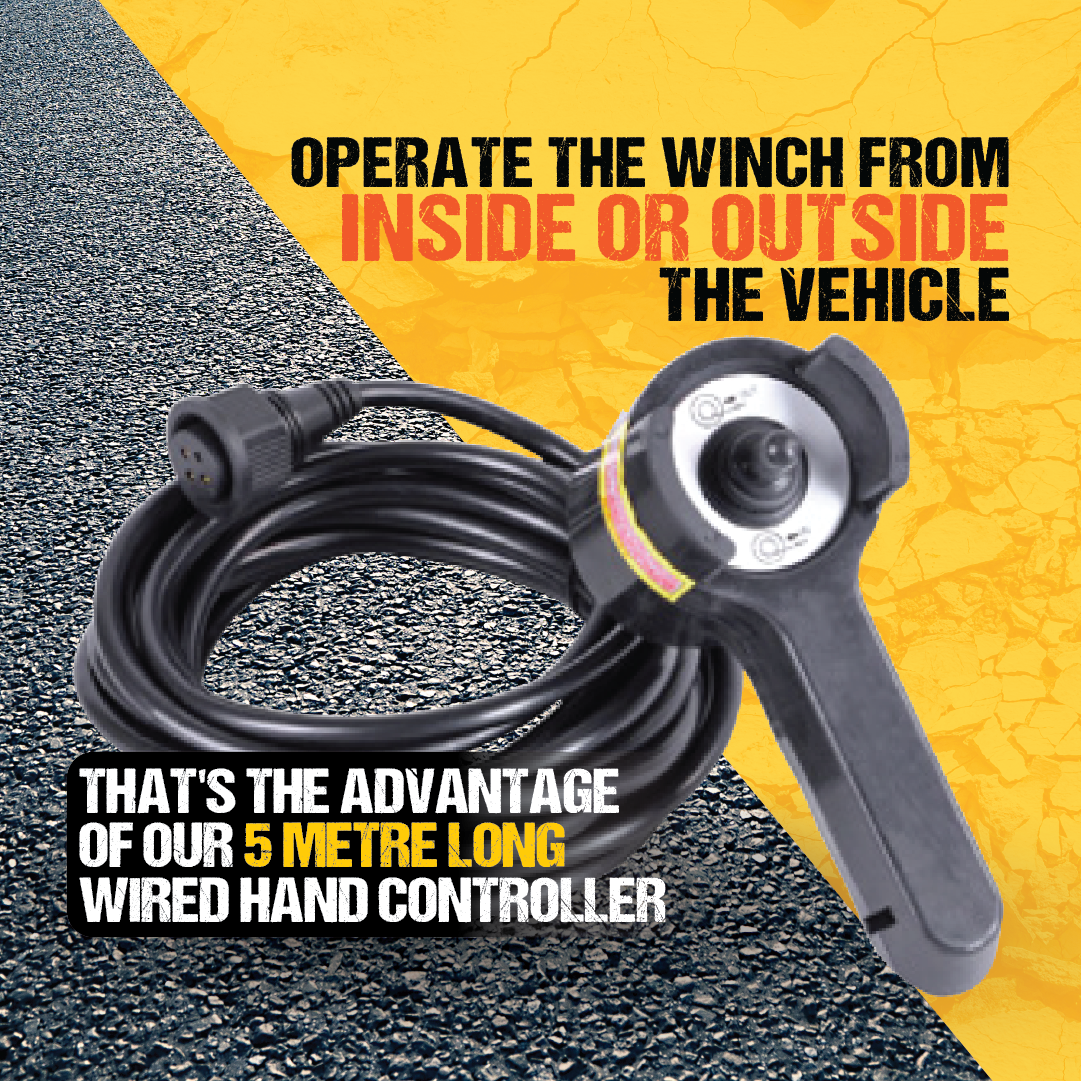

Operate the winch from inside or outside the vehicle

That's the Advantage of our 5 Metre Long Wired Hand Controller

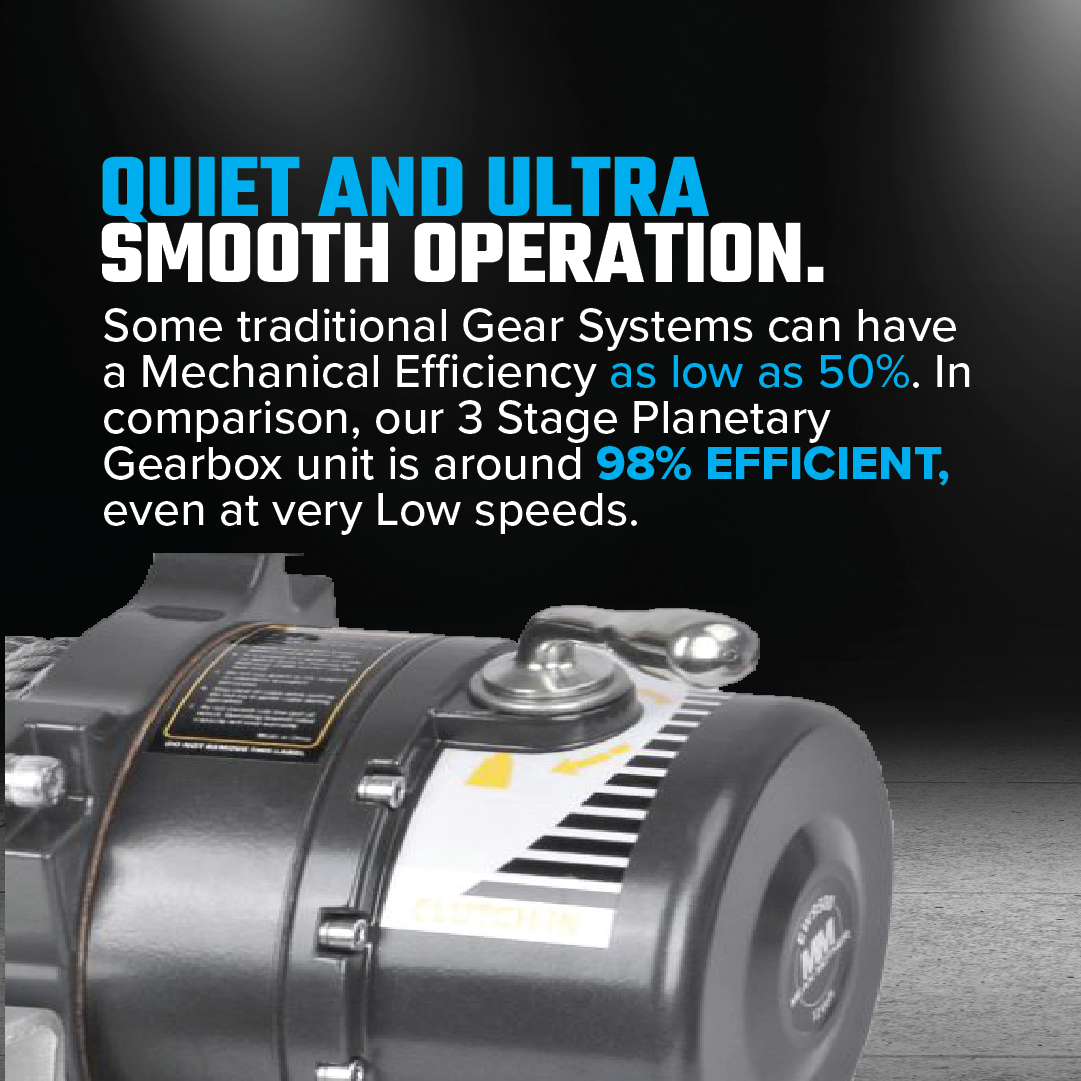

QUIET AND ULTRA SMOOTH OPERATION

Some traditional gear systems can have a mechanical efficiency as low as 50%. In comparison, our 3 stage planetary gearbox unit is around 98% efficient, even at very low speeds.

“MEAN MOTHER MAKE DAMN GOOD WINCHES"

ELLE AND WESTY
ESCAPE TWO TV

Why a
Synthetic Rope?

Lighter and Stronger than Steel Cable

No coil memory like steel cable. So makes it easier to use whilst setting up a recovery.

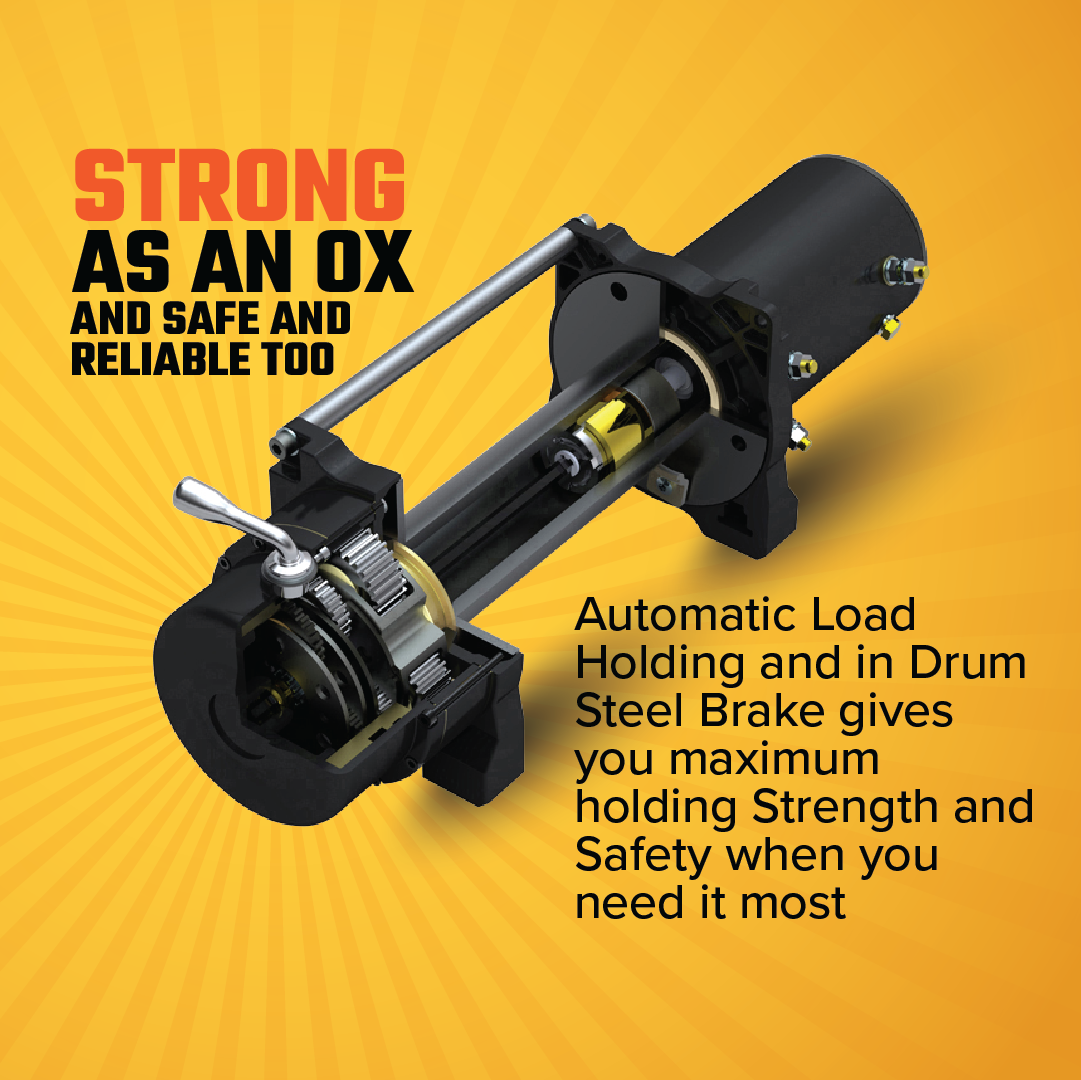

Strong as an ox

AND SAFE AND RELIABLE TOO

Automatic Load Holding and in Drum Steel Brake gives you maximum holding Strength and Safety when you need it most

Hardened Seamless Steel Drum provides unbeatable strength to endure the Pulling Forces exerted during any Recovery

Powerful motor will
get you out of any Recovery Situation

High Quality Series Wound Motor offers high output power using less AMPs at maximum capacity to deliver superior performance and reliablity

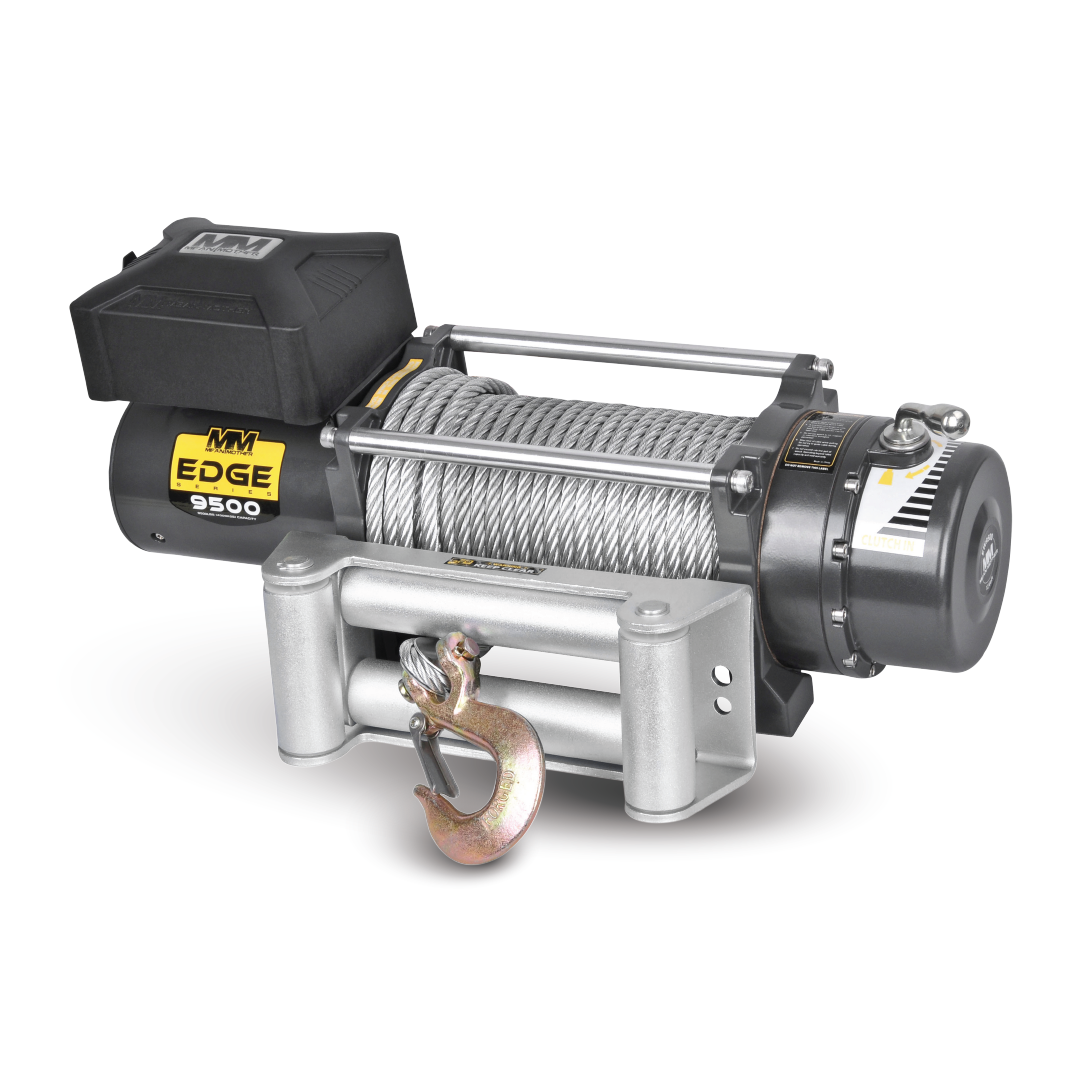

USEFUL SPECIFICATIONS

Specifications : 9500lb (4309kg)
Voltage : 12 Volt
Gear Ratio : 212:1
Gear Tran : 3 Stage Planetary
Clutch : Sliding Ring Gear
Motor Type : Series Wound
Motor : 4.8 Hp, 3.6 Kw
Control : Hand Control, 5m lead
Braking : Automatic Load Holding in Drum
Drum Size : 67mm x 228mm(2.64″ x 9″)
Cable : Galvonised Aircraft 9.53mm x 30.5m (3/8″ x 100′)
Clevis Hook : 3/8″
Overall Dimensions : 570mm x 168mm x 175mm (22.45″ x 6.62″ x 6.89″)
Net Weight : 43kg
Mounting Bolt Pattern : 254mm x 114.3mm (10″ x 4.5″)
Battery Power Cables : 2 x 25mm², Tinned Copper with Sheath Protection
Extension hose : 5m (16.5’) Rubber air hose with quick connectors
Motor Power Cables : 3 x 25mm², Tinned Copper with Sheath Protection
Recommended Battery : Minimum 650CCA
Finish : Powder Coating

Performance of 1st Layer

Line Pull Line Speed Motor Amp Draw Current
0 lbs 0 kgs 19 Fpm 5.8 Mpm 110 12 Volt
4000 lbs 1816 kgs 12.5 Fpm 3.8 Mpm 210 12 Volt
6000 lbs 2724 kgs 10.5 Fpm 3.2 Mpm 260 12 Volt
8000 lbs 3632 kgs 8.6 Fpm 2.6 Mpm 300 12 Volt
9500 lbs 4309 kgs 7.9 Fpm 2.4 Mpm 350 12 Volt

Line Pull & Cable Capacity by Layer

Cable Layer Rated Line Pull Cable Capacity
1 9500 lbs 4309 kgs 15 Feet 5 Metres
2 7500 lbs 3402 kgs 38 Feet 11.5 Metres
3 6200 lbs 2812 kgs 64 Feet 19.5 Metres
4 5300 lbs 2404 kgs 95 Feet 29 Metres
5 4630 lbs 2100 kgs 100 Feet 30.5 Metres
